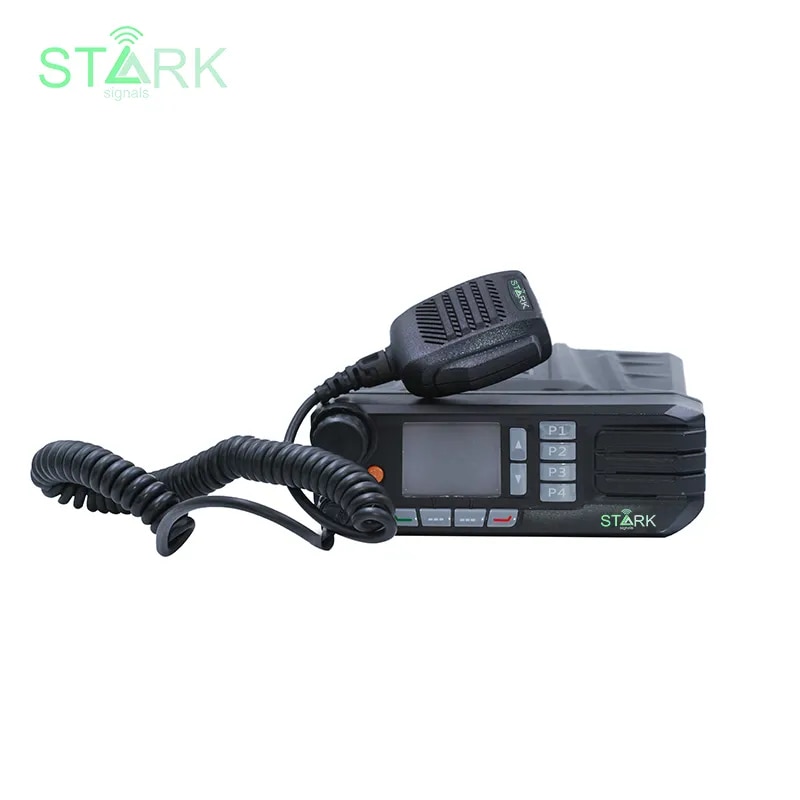

STARK SGS10-D3M Digital DMR Base Station (USER License and DPL Required)
Description
Stark SGS10-D3M is a high-end digital mobile radio, which is totally developed by Stark based on TI OMAP platform and compliant with ETSI TS 102 361 protocol. With totally customizable functions and features, we can offer API for second-development.
256-bit Encryption;
IP Data/Defined Data;
Rich Second-developments;
Support Analog and Digital Modes.
Dual Modes (Analog + Digital)
SGS10-D3M supports analog and digital modes, it is compatible with the prevalent analog systems and has smooth analog to digital transitions.
Versatile Voice Calls
SGS10-D3M supports various voice call types, including Private Call, Group Call, All Call and Emergency Call.
Messages
SGS10-D3M supports IP Data/Defined Data messages, it also supports third party to control the radio via third party’s API (GPS, Radio Registration Services, Radio Call Control, Data Transfer), via Telemetry control to radio.
Accessory Expansion
SGS10-D3M supports third party to develop accessories expansion via front and rear ports of the mobile radio. (Check out that features as channel steering and emergency switch have been supported via the back port!)
Various Analog Signaling Types
SGS10-D3M has various analog signaling types (QDC1200, DTMF, 2-Tone, 5-Tone and CTCSS/CDCSS).
Supplementary Services
SGS10-D3M has the supplementary services of Radio Check, Remote Monitor, Call Alert, Radio Enable and Radio Disable.
Scan
SGS10-D3M supports scanning of analog voice and signaling, digital voice and data. It can also support mixed modes scanning.
Roaming
SGS10-D3M supports automatic roaming of all sites in an IP Multi-site Connect system.
Privacy of Voice and Data
SGS10-D3M supports analog scrambling, and digital encryption using Advanced Encryption Standard (AES) and ARCFOUR (ARC4) encryption algorithm to voice with 256-bit encryption.
Upgrade to Tier-III
Customer can upgrade SGS10-D3M software to Tier-III without buying new devices.
GPS (Optional)
SGS10-D3M has stable GPS performance and GPS text messages.
Frequency Range UHF: 400-470MHz
VHF: 136-174MHz
Channel Capacity 1024(64 Zones×16 Channels)
Zone 64
Channel Spacing 25kHz/20kHz/12.5kHz
Operating Voltage 13.6V ±15%
Dimensions (H×W×L) 60×173×178mm
Current Drain (Standby) <0.9A
Current Drain (Receive) <12A
Current Drain (Transmit) 5W <5A
25W <8A
45W/50W <12A
LCD 220*176 Pixels, 262000 Colors, 2.0 Inch
Receiver
Sensitivity (Analog) 0.22μV (12dB SINAD)
0.25μV (Typical) (12dB SINAD)
0.3μV (20dB SINAD)
Sensitivity (Digital) 0.25μV /BER 5%
Adjacent Channel Selectivity 65dB
Intermodulation 70dB
Spurious Response Rejection 80dB
Blocking 84dB
Conducted Spurious Emission ≤-57dBm
Hum and Noise 40dB @ 12.5kHz
43dB @ 20kHz
45dB @ 25kHz
Audio Distortion ≤3%
Audio Response +1~-3dB
Audio Power Output Internal (@ 20Ω Load) 3W
Audio Power Output External (@ 8Ω Load) 8W
Transmitter
Tx Power Output UHF Low: 5W / Middle: 25W / High: 45W
VHF Low: 5W / Middle: 25W / High: 50W
Modulation Limiting ≤2.5kHz @ 12.5kHz
≤4.0kHz @ 20kHz
≤5.0kHz @ 25kHz
Conducted/Radiated Emission <-36dBm (<1GHz) / <-30dBm (>1GHz)
Audio Response +1~-3dB
Audio Distortion ≤3%
Frequency Stability ±1.0ppm
FM Modulation 11KΦF3E @ 12.5kHz
14KΦF3E @ 20kHz
16KΦF3E @ 25kHz
4FSK Digital Modulation 12.5kHz Data Only: 7K60FXD
12.5kHz Data & Voice: 7K60FXW
Adjacent Channel Power 60dB @ 12.5kHz / 70dB @ 20/25kHz
Digital Vocoder Type AMBE3000++
Digital Protocol ETSI-TS102 361-1.-2.-3
Environmental Specifications
Operating Temperature -30℃ ~ +60℃
Storage Temperature -40℃ ~ +85℃
ESD IEC 61000-4-2 (Level 4) ±8kV (Contact) ±15kV (Air)
Dust & Water Intrusion IP54 Standard
GPS(Optional)
Accuracy specs are for long-term tracking (95th percentile values>5 satellites visible at a nominal -130dBm signal strength)
TTFF (Time To First Fix) Cold Start <1 minute
TTFF (Time To First Fix) Hot Start <10 seconds
Horizontal Accuracy <10 meters
All specifications are tested according to applicable standards and subject to changes without notice due to continuous development.
