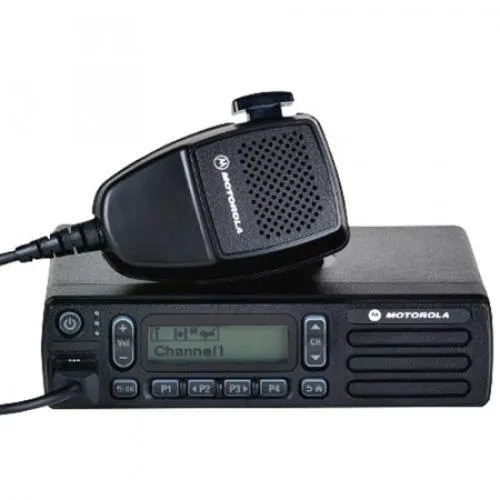

MOTOROLA XIRM3688 BASE STATION (USER License and DPL Required)

Motorola XiR M3688 Base Station (This equipment is License Band user license and DPL Required )

Your people are on the move, delivering cargo, picking up consignments, driving passengers to their destinations. You need to keep them in touch and on track efficiently. And you want to make sure the radios they use are as effective and adaptable as possible. The MOTOTRBO XiR M3188 / XiR M3688 mobile radios offer the benefits of the latest technology from superior audio to greater coverage - all at an affordable price.

Stay connected with your workers whether they’re delivering cargo, dispatching trucks or driving a school bus. The MOTOTRBO XiR M3688 mobile radio (with alphanumeric display) is a reliable, cost-efficient solution to keep your team in contact so they can communicate, coordinate and collaborate for maximum efficiency and safety. The XiR M3688 is designed for the everyday driver, so you can connect without distraction.

MOTOROLA XiR M3688 – Base / Mobile / Fixed Station Radio

Frequency Bands: VHF 136–174 MHz / UHF 403–470 MHz

Channel Capacity: 160 channels

Operating Modes: Analog FM + Digital DMR

RF Output Power: 1–25 W (Low) / 25–45 W (VHF High) / 25–40 W (UHF High)

Channel Spacing: 12.5 / 20 / 25 kHz

Receiver Sensitivity: ~0.22 µV (analog) / ~0.25 µV (digital)

Modulation: FM / 4-FSK digital

Power Supply: 13.2 V DC typical

Dimensions: 44 × 169 × 134 mm

Weight: ~1.3 kg

Audio Output: 4 W internal speaker; supports external speaker

Display: Alphanumeric display for channel and status

Controls: Programmable buttons for quick functions

Environmental Rating: IP54 dust/splash resistant

Ruggedness: Meets MIL-STD durability standards

Digital Features: Private/Group/All-Call, text messaging, basic data

Voice Features: Loud, clear audio with noise reduction

Dual-Mode Migration: Works with both analog and digital fleets

Scan and Priority Scan support

Transmit-Interrupt (decode) capability

Repeater compatible for extended coverage

Suitable for vehicle-mount or fixed base station use

Ideal for industry, security, logistics, and dispatch applications
