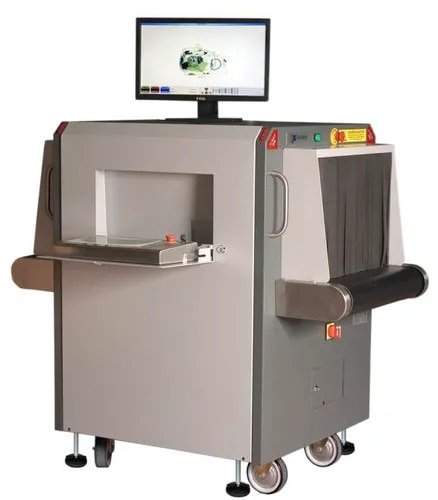

XRAY BAGGAGE SCANNER

• Multi energy (4-energy generation with 6 colour imaging)

• Detail enhancement (PV)

• Black & White view (B/W)

• Organic / inorganic separation (OM/IM)

• Pseudo color (PS)

• Inverse view (IN)

• High penetration force (HP)

• Variable edge clarification (+E /-E)

• Variable color separation (+C /- C)

• Variable contrast level (+G /-G)

• Variable density zoom (+D /-D)

• Zoom real time (64x)

• Image of previous baggage (more than 100)

• Manual image archiving

• Automatic image archiving (min. 100,000)

• Programmable function keys

• Baggage counter

• Date/Time indicator

• UPS (for computer)

• Flat panel LED monitor

• Threat Image Projection (TIP)

• Organic danger alarm

• Inorganic danger alarm

• Operator Training Program (OTP)

• 6 color imaging

• Suspicious bag alarm

• Optional Features

• UPS (Uninterrupted Power Supply)

• Operator console

• Input – output rollers

Physical Properties:

Dimensions (LxWxH): 1,430mm x 860mm x 1310mmApprox. Weight Unpacked: 500 Kg (1102 lbs.)

Shipping Dimensions: 1630mm x 1060mm x 1550mm Approx. Weight Packed: 600 Kg (1323 lbs.)

Tunnel Dimensions: 610mm (W)x 422 mm (H)

Conveyor Speed: 0.20 m/sec

Conveyor Load Capacity: 165 Kg (364 lbs.)

evenly distributed Conveyor

Height: 790 mm

System Power: 230 VAC +/- 10% / 60/50HzX-RAY

Generator and Image Performance Steel Penetration: 38 mm guaranteed; 40 mm

typical Wire Resolution: 38AWG guaranteed; 40AWG typical Article Separation: Low Z, Medium Z, High Z to 0.5 Z accuracy Generator Cool: Oil and forced air cooling

Anode Voltage: 160kv rated, operating at 147kvTube Current: 0,7 mA

Direction Of X-ray: Vertical and upwards

Computer Specifications:

Processor: Intel® Core™2 Duo

Processor min.Monitor: 20” LED color,

flicker free Memory: 2GB RAM minimum Video Card: 1 GB minimum Hard Drive: 500 GB minimum USB Port: 6 port minimum Operating System: Linux OPERATING ENVIRONMENT Storage Temperature: -20 ºC to 60 ºC Operating Temperature: -10 ºC to 50 ºC Relative Humidity: 5-95% condensation

Health And Safety:

All X-Ray Center Ltd products meet all applicable international health and safety regulations.

USFDA Federal Standard 21CFR 1020.40 Health and Safety at Work Act 1974-compliant Maximum level of radiation the exterior panels come in contact with is 0.1mR/hour.

Film safety: ISO 1600 / 33 DINCE Compliance: Certified FCC & IEC Compatibility: Available
