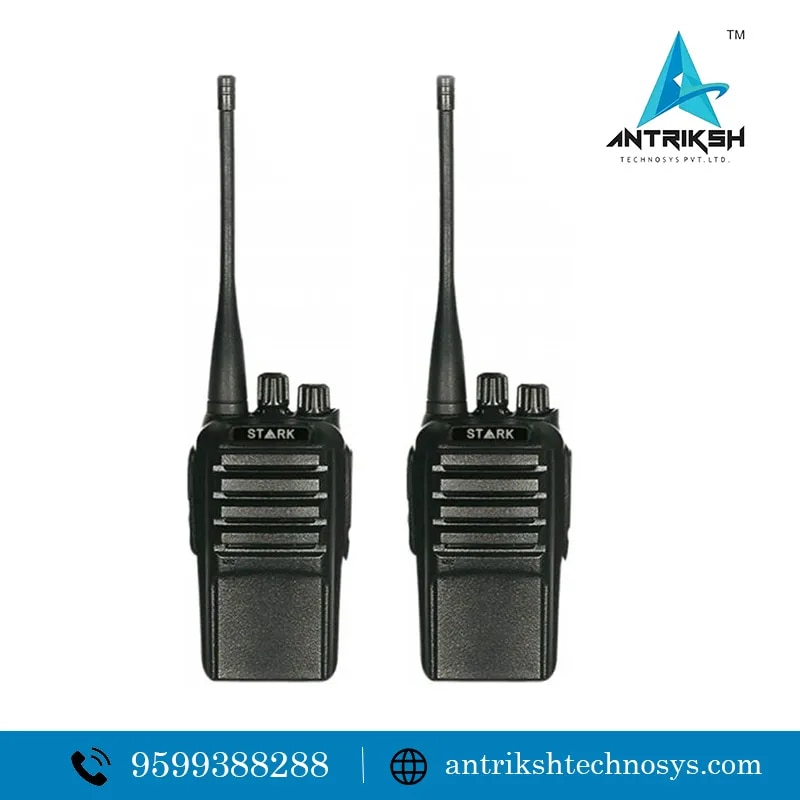

Stark walkie talkie SGS10 - S (USER License and DPL Required)

(This equipment is License Band user license and DPL Required )

WALKIE TALKIE MANUFACTURER IN DELHI

STARK SGS10-S – Technical Specifications & Features

GENERAL

- Frequency Bands: VHF 136–174 MHz; UHF 350–390 MHz, 400–470 MHz, 450–520 MHz

- Channel Capacity: 16 channels

- Channel Spacing: 25 kHz / 12.5 kHz

- RF Output Power: VHF 5 W (high), 1 W (low); UHF 4 W (high), 1 W (low)

- Operating Voltage: 7.5 V DC

- Battery: 2200 mAh Li-ion

PERFORMANCE / AUDIO

- Receiver Sensitivity: ~ 0.22 µV / 0.25 µV

- Audio Output (internal speaker): 700 mW

- Modulation Type: FM (analogue) — 16 KΦF3E / 8 KΦF3E

- Adjacent Channel Selectivity: 70 dB (wide) / 60 dB (narrow)

- Intermodulation Rejection: 65 dB

- Spurious Response Rejection: 70 dB

- Audio Signal-to-Noise: 45 dB (wide) / 40 dB (narrow)

- FM Distortion: ≤ 5%

FEATURES & FUNCTIONS

- VOX (voice-activated transmit) support

- Scan function, channel-scan support

- CTCSS/CDCSS tone encode & decode

- Emergency alert

- Programmable keys

- High/Low power switch (for range vs battery economy)

- Busy-channel lockout (BCL)

PHYSICAL / ENVIRONMENTAL

- Dimensions (approx): 116 × 56 × 34 mm

- Weight (with antenna & battery): ~203 g

- Operating Temperature: –25 °C to +55 °C

- Impedance (antenna): 50 Ω
