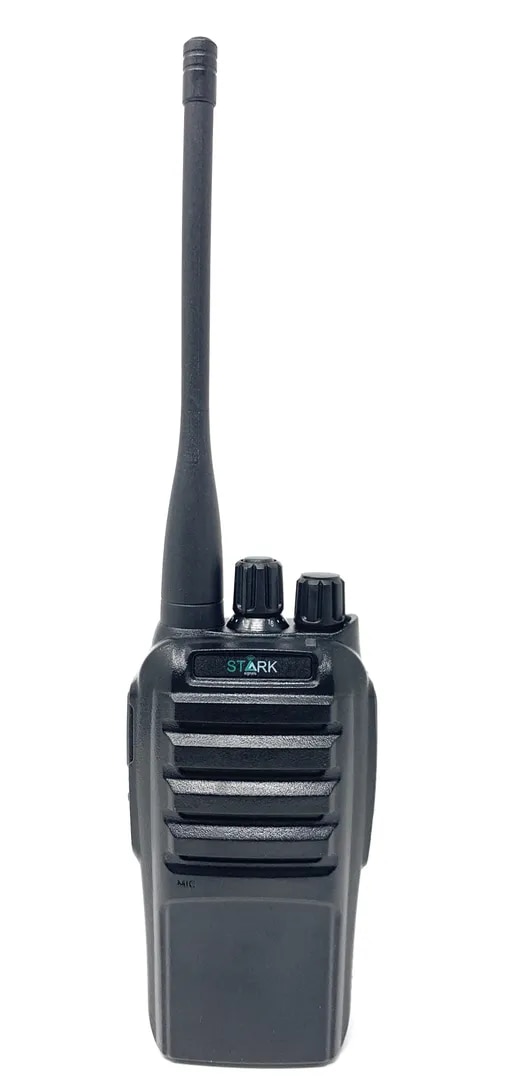

STARK SGS10-S Walkie Talkie (USER License and DPL Required)

STARK SGS10-S is a professional two-way radio. The advanced audio process technique and ergonomic design make it so different from others. Users will get used to it really soon and be surprised by its powerful audio process ability. Besides above features, SGS10-S also provides a few higher level functions, such as long standby period, VOX, power switch, etc.

VOX;

Scan;

DTMF;

CTCSS/CDCSS;

Emergency Alert;

Programmable Keys;

High/Low Power Switch;

Busy Channel Lockout (BCL).

VOX

This function allows radio to transmit without PTT key being pressed.

CTCSS / CDCSS

Unique CTCSS / CDCSS encode and decode are useful for group users to avoid unwanted conversation on the same channel.

Emergency Alert

SGS10-S emits emergency alarm or sends ENI to predefined person when users are in an emergency situation.

Busy Channel Lockout (BCL)

BCL is used to protect the on-going conversation from unwanted interference. It is a good way to avoid unnecessary interference.

High/Low Power Switch

This function allows radio to be switched between high power and low power. Low power can satisfy small range communication. It results in a longer standby period.

Other Functions Available:

Voice Prompts

DTMF

Scan

25 kHz/12.5kHz Switch

Programmable Keys

Frequency Range VHF: 136-174MHz

UHF: 350-390MHz; 400-470MHz; 450-520MHz

Channel Capacity 16

Channel Spacing 25kHz/12.5kHz

Frequency Stability ±1.5ppm

Operating Temperature -25℃ ~ +55℃

Antenna Impedance 50Ω

Operating Voltage 7.5V

Dimensions (H×W×D) 116×56×34mm

Weight (With Antenna & Battery) 203g

Battery 2200mAh (Li-ion Battery)

Receiver

Sensitivity 0.22μV / 0.25μV

Adjacent Channel Selectivity 70dB / 60dB

Intermodulation Rejection 65dB

Spurious Response Rejection 70dB

S/N 45dB / 40dB

Rated Audio Power Output 700mW

Rated Audio Distortion ≤5%

Transmitter

RF Power (H/L) UHF: 4W/1W VHF: 5W/1W

Modulation Type 16KΦF3E / 8KΦF3E

Modulation Limiting 5kHz / 2.5kHz

FM Distortion ≤5%

Residual FM -45dB / -40dB

Adjacent Channel Power -70dB / -60dB

Spurious and Harmonics -36dBm<1GHz; -30dBm>1GHz
