Description

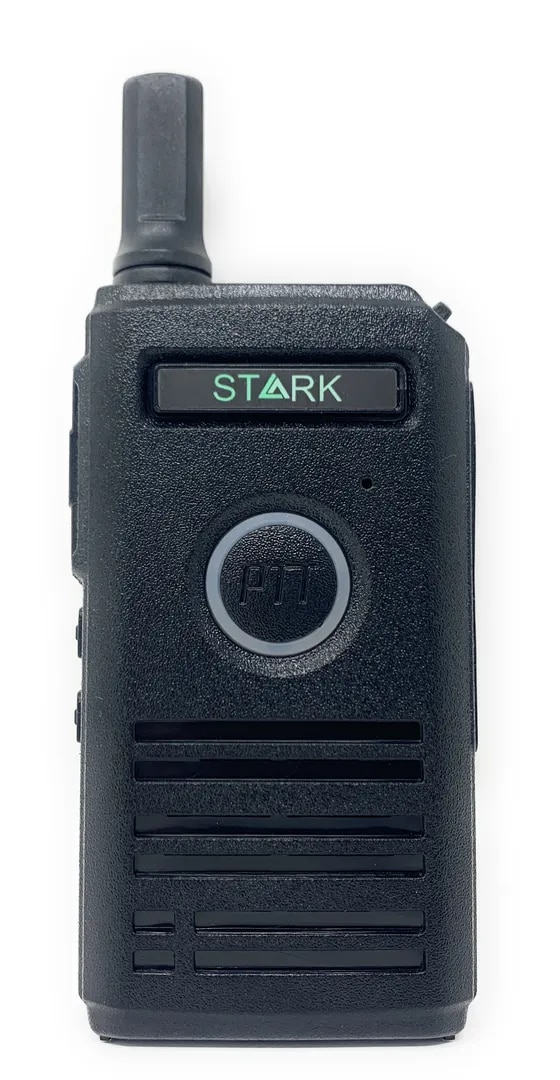

Stark walkie talkie SGS10-P UHF two way radio 350-390 MHz 16CH 2W Double PTT Ultra Slim & breathing Light Design Mini Transceiver
Feature
1.Double PTT
2. UHF 350-390 MHZ
3. 16 Memory Channel
4. 2W Output Power
5.Scan function
6.Voice prompt
7.Strong anti-interference ability
8.Super-long standby
9.Independent Design Capability
10.Ultra Slim Body
11.HD sound quality
12.Breathing light
13. PC Programmming
14. USB CHARGING SIMPLE OPERATING: Support PC and power bank charging
Specifications
Frequency
UHF 350-390 MHz
Channel Capacity
16 channels
Operating Voltage
3.7V
Battery
Li-ion
Operating temperature
-20°c ~+50°c
Antenna impedance
50Ω
Mode of operation
simplex or semi-duplex
Dimension
123*52*14mm
Weight (with battery/antenna)
80g
Transmitter
Frequency
UHF 400-470MHz
Sensitivity
≤0.20μV
Occupied bandwidth
≤16KHz
Intermediation
≥55dB
Audio power
>500Mw
Rate audio distortion
≤5%
Frequency stability
5ppm
Current
55Ma when standby, 150Ma when working
Audio response
+7~-12.5dB
Receiver
Frequency
UHF 350-390 MHz
Transmitter power
2W
Modulation type
11K0F3E
Spurious Radiation
≤7.5 uW
Modulation noise
<-40d
Modulation distortion
<5%
Frequency stability
5ppm
Modulation max deviation
≤+/-5KH
Current
≤1200Ma
Audio response
+6.5~-14dB
Adjacent Ch. Power
≥65dB
Intermediation sensitivity
8-12mv
