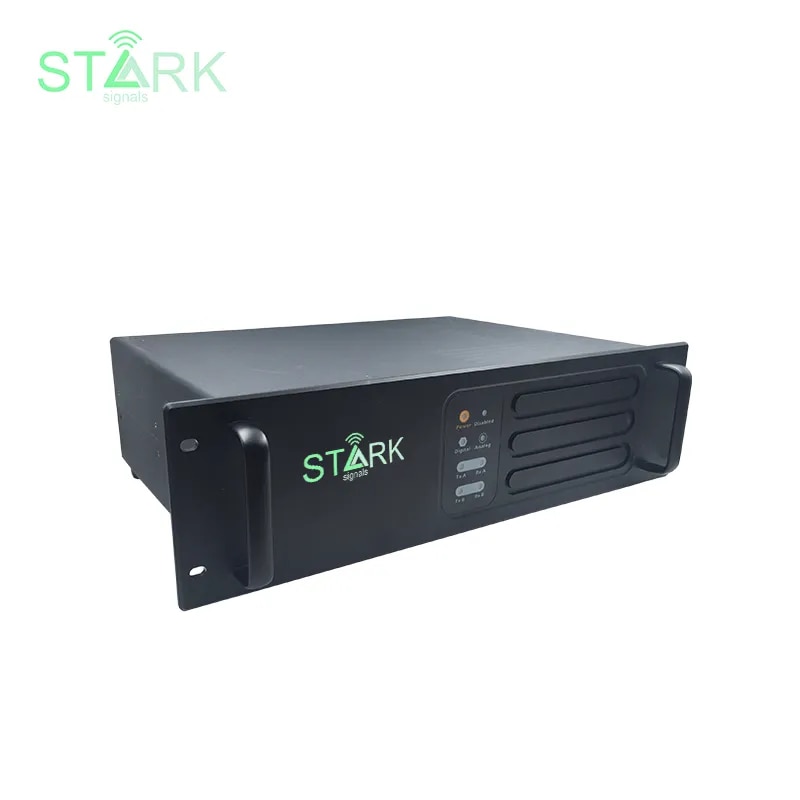

STARK SGS10-DRPR DIGITAL REPEATER STATION (USER License and DPL Required)

(This equipment is License Band user license and DPL Required )

STARK SGS10-DRPR is a high-end digital repeater, which is totally developed by STARK based on TI OMAP platform and compliant with ETSI TS 102 361 protocol. It has powerful functions and multiple purposes by integrating a variety of the best digital technologies of two-way radio and providing various application solutions. With totally customizable functions and features, we can offer API for second-development. It is the ideal communication solution for the market.

IP Multi-site Connect;

Support Trunking Extensions;

Adopt TDMA Digital Technologies;

Support Both Analog and Digital Modes.

Analog or Digital Mode

Operates in analog or digital mode – LED indication mode

IP Multi-site Connect (Optional )

Digital solutions extend the coverage of SGS10-DRPR communication system to the users located anywhere in the globe by Internet to greatly improve the customer service and productivity;

100% Continuous Full-duty Cycle at High Power

Integrated Power Supply

Multiple Installation Methods

SGS10-DRPR is rack- or wall-mountable and can be put on a table/desk;

TDMA Technology

SGS10-DRPR adopts TDMA technology which enables two channels to be used on the same radio frequency at the same time;

General

Frequency Range UHF: 400-470MHz

VHF: 136-174MHz

Channel Capacity 16

Operating Voltage AC 110~240V

Channel Spacing 25kHz/20kHz/12.5kHz

Operating Temperature -30℃ ~ +60℃

Dimensions (H×W×L) 132.5×482.5×296.5mm

Current Drain (Standby) <0.9A

Current Drain (Transmit) <12A

Receiver

Analog Sensitivity 0.3μV (12dB SINAD)

0.22μV (Typical) (12dB SINAD)

0.4μV (20dB SINAD)

Digital Sensitivity 0.3μV/BER 5%

Adjacent Channel Selectivity TIA-603: 65dB @ 12.5kHz/75dB @ 20/25kHz

ETSI: 65dB @ 12.5kHz/75dB @ 20/25kHz

Intermodulation TIA-603: 75dB @ 12.5/20/25kHz

ETSI: 70dB @ 12.5/20/25kHz

Spurious Response Rejection TIA-603: 80dB @ 12.5/20/25kHz

ETSI: 80dB @ 12.5/20/25kHz

Blocking TIA-603: 90dB

ETSI: 90dB

Conducted Spurious Emission ≤-57dBm

Audio Distortion ≤3%

Audio Response +1~-3dB

Transmitter

Tx Power Output UHF: Low: 5W Middle: 25W High: 45W

VHF: Low: 5W Middle: 25W High: 50W

Modulation Limiting ±2.5kHz @ 12.5kHz

±4.0kHz @ 20kHz

±5.0kHz @ 25kHz

Conducted/Radiated Emission <-36dBm (<1GHz) / <-30dBm (>1GHz)

Adjacent Channel Power 60dB @ 12.5kHz

70dB @ 20/25kHz

Audio Response +1~-3dB

Audio Distortion ≤3%

Frequency Stability 0.5ppm

FM Modulation 11KΦF3E @ 12.5kHz

14KΦF3E @ 20kHz

16KΦF3E @ 25kHz

4FSK Digital Modulation 12.5kHz Data Only: 7K60FXD

12.5kHz Data & Voice: 7K60FXW

Digital Vocoder Type AMBE3000

Digital Protocol ETSI-TS 102 361-1
