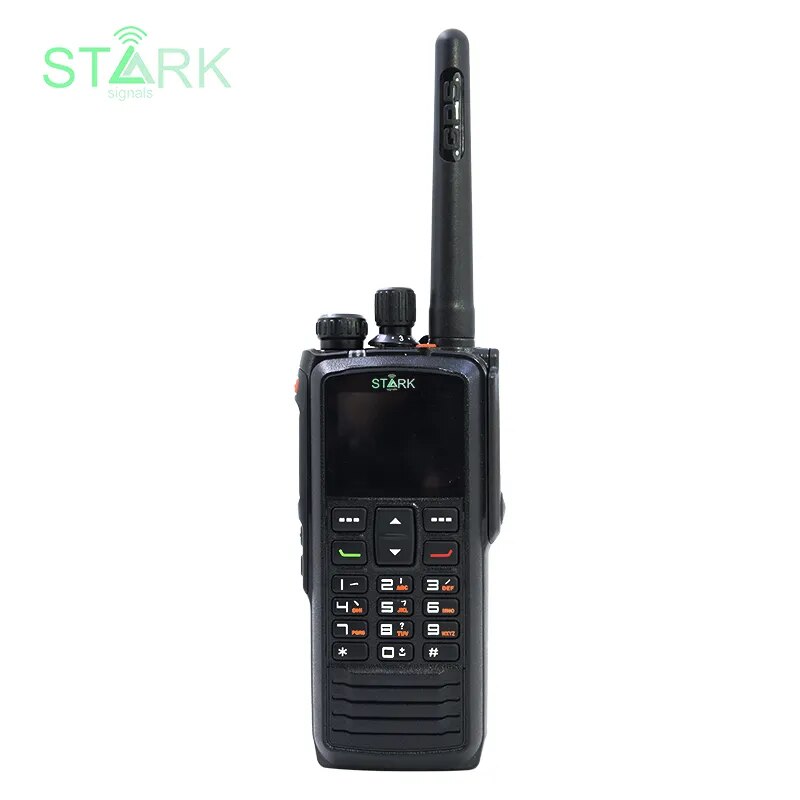

STARK SGS10-D32 Digital Walkie Talkie (USER License and DPL Required)
Description
STARK as a high-end portable radio, SGS10-D32 is fully developed by Stark based on TI OMAP platform and compliant with ETSI TS 102 361 protocol.
Totally customizable functions and features:
Vibrate;
Voice Recording (1G/2G);
GPS (Optional);
Bluetooth (Optional);
Man Down (Optional).
We can offer API for second-development.
Stark TI OMAP Series digital portable radios include SGS10-D32 and SGS10-D31 (without screen and keyboard).
Dual Modes (Analog + Digital)
SGS10-D32 can operate in either analog or digital mode. It is compatible with the prevalent analog system, ensuring a smooth analog-to-digital transition.
Versatile Voice Calls
SGS10-D32 supports various voice call types, including Private Call, Group Call, All Call and Emergency Call.
Text Message
SGS10-D32 supports IP Data/Defined Data messages, including Private Message and Group Message.
Digital Signaling
SGS10-D32 supports various signaling, including Call Alert, Radio Check, Remote Monitor, Radio Disable and Radio Enable.
Vibrate
This feature is helpful in reminding you of the reception of any Private Call, Call Alert or Text Message under noisy or low-volume conditions.
Various Analog Signaling Types
SGS10-D32 supports various analog signaling (DTMF, 2-Tone, 5-Tone, QDC-1200 and CDCSS/CTCSS), providing higher function expansion capacity.
Scan
SGS10-D32 supports scanning of analog voice and signaling, digital voice and data. It can also support mixed modes scanning.
IP Multi-site Connect and Roaming
SGS10-D32 supports communication with any other terminals as well as smooth Roaming within IP Multi-site Connect System.
Advanced Features (Optional)
SGS10-D32 supports various optional advanced features including Man Down, GPS and Bluetooth.
Privacy of Voice and Data
SGS10-D32 supports analog scrambling, and digital encryption using Advanced Encryption Standard (AES) and ARCFOUR (ARC4) encryption algorithm to voice with 256-bit encryption.
Upgrade to Tier-III
Customer can upgrade SGS10-D32 software to Tier-III without buying new devices.
Frequency Range VHF: 136-174MHz
UHF: 350-400MHz; 400-470MHz; 450-520MHz
Channel Capacity 1024
Zone Capacity 64 (Each with a Maximum of 16 Channels)
Channel Spacing 12.5kHz (Digital) 25/20/12.5kHz (Analog)
Operating Voltage 7.4V
Battery 2000mAh / 3000mAh (Optional) Li-ion Battery
Battery Life
(5-5-90 Duty Cycle, High TX Power)
Analog: Above 11 Hours
Digital: Above 15 Hours
Frequency Stability ±1.0ppm
Antenna Impedance 50Ω
Dimensions (H×W×D) 130×55×35mm
Weight 333g
LCD Display 1.8 TFT
Receiver
Sensitivity (Analog) 0.22μV (12dB SINAD) / 0.22μV (Typical) (12dB SINAD)
Sensitivity (Digital) 0.22μV/BER 5%
Selectivity TIA-603 ETSI ≥60dB @ 12.5kHz / 70dB @ 20&25kHz
Intermodulation TIA-603 ETSI ≥70dB @ 12.5/20/25kHz
S/N 40dB @ 12.5kHz
Rated Audio Power Output 1.5W
Rated Audio Distortion ≤3%
Audio Response +1~-3dB
Conducted Spurious Emission <-57dBm
Transmitter
RF Power Output VHF High Power: 5W UHF High Power: 4W
VHF Low Power: 1W UHF Low Power: 1W
FM Modulation 11KΦF3E @ 12.5kHz
14KΦF3E @ 20kHz
16KΦF3E @ 25kHz
4FSK Digital Modulation 12.5kHz Data Only: 7K60FXD
12.5kHz Data & Voice: 7K60FXW
Conducted/Radiated Emission -36dBm<1GHz / -30dBm>1GHz
Modulation Limiting ±2.5kHz @ 12.5kHz
±4kHz @ 20kHz
±5kHz @ 25kHz
FM Noise 40dB @ 12.5kHz / 43dB @ 20 kHz / 45dB @25kHz
Adjacent Channel Power 60dB @ 12.5kHz 70dB @ 20/25kHz
Audio Distortion ≤3%
Digital Vocoder Type AMBE3000++
Digital Protocol ETSI-TS102 361-1.-2.-3
Environmental Specifications
Operating Temperature -30℃~ +60℃
Storage Temperature -40℃~ +85℃
ESD IEC 61000-4-2 (Level 4) ±8kV (Contact) ±15kV (Air)
U.S. Military Standard MIL-STD-810 C/D/E/F/G
Dust & Water Intrusion IP67 Standard
Humidity Per MIL-STD-810 C/D/E/F/G Standard
Shock & Vibration Per MIL-STD-810 C/D/E/F/G Standard
All specifications are tested according to applicable standards and subject to changes without notice due to continuous development.
