Home Products Stark Base station SGS10-D3M (USER License and DPL Required)
Stark Base Station S
Stark Base Station S
Base station by Stark

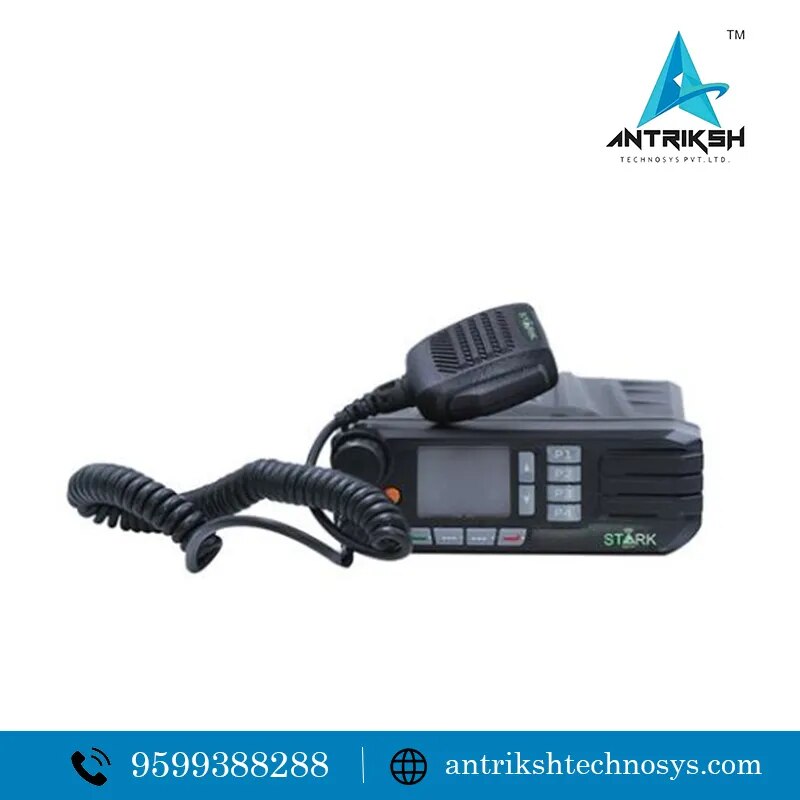

Stark Base station SGS10-D3M (USER License and DPL Required)

INR 35000 INR 37000
You Save: INR 2000 (5.41%)
Share with
Share this on :

Description

Product details

Stark Base Station SGS10-D3M (This equipment is License Band user license and DPL Required ) STARK SGS10-D3M – Base / Mobile Station Specifications & Features GENERAL - Type: Digital / Analogue Base or Mobile Station (DMR + Analog) - Frequency Bands: VHF 136–174 MHz / UHF 400–470 MHz - Channel Capacity: 1024 (64 Zones × 16 Channels) - Channel Spacing: 12.5 kHz / 20 kHz / 25 kHz - Operating Voltage: 13.6 V DC ± 15% - Modes Supported: Analog FM + Digital (DMR ETSI TS 102 361 standard) - Dual Mode: Yes — smooth transition between analog and digital TRANSMITTER / RECEIVER - Transmit Power (VHF / UHF): Low 5 W / Mid 25 W / High 45–50 W - Receiver Sensitivity (Analog): ~ 0.22 µV (12 dB SINAD) - Receiver Sensitivity (Digital): ~ 0.25 µV (5% BER) - Adjacent Channel Selectivity: 65 dB - Intermodulation Rejection: 70 dB - Spurious / Blocking Rejection: 80 dB (blocking 84 dB) - Audio Output: internal + external: Internal up to 3 W (@ 20 Ω load); External up to 8 W (@ 8 Ω load) - Audio Distortion: ≤ 3% FEATURES & FUNCTIONS - Supports Private Call / Group Call / All Call / Emergency Call - Mixed-mode scan: analog voice/signaling + digital voice/data, plus mixed-mode scanning - Supports analog signaling types: DTMF, 2-tone, 5-tone, QDC-1200, CTCSS/CDCSS - Encryption: Analog voice scrambling; Digital voice & data encryption with AES or ARC4 (256-bit) - Supplementary services: Radio Check, Remote Monitor, Call Alert, Radio Enable/Disable, Roaming (for multi-site IP connectivity) PHYSICAL / ENVIRONMENTAL - Dimensions (HxWxL): 60 × 173 × 178 mm - Operating Temperature Range: –30 °C to +60 °C - Environmental protection: IP54 dust & water intrusion rating - Firmware / accessory support — expandable via front/rear ports (e.g. external speaker, external controller, accessories) ADDITIONAL - Suitable as fixed base-station, vehicle-mounted mobile radio, dispatch / control-room radio or repeater-site radio - Compatible with both legacy analog radios and modern digital radios — good for mixed-fleet upgrades We have branches in Delhi, Mumbai, Kolkata, Jaipur, Chennai, Chandigarh, Chattisgarh, J&K, Kashmir, Jammu, Goa, Odissa, Karnataka, Uttar pardesh, Punjab, Rajasthan, Kerala, Gujrat, Bihar, Haryana, Madhya Pradesh, Jharkand, Uttarakhand, etc
