MOTOROLA XIRM6660 BASE STATION & FIXED STATION (USER License and DPL Required)

(This equipment is License Band user license and DPL Required )

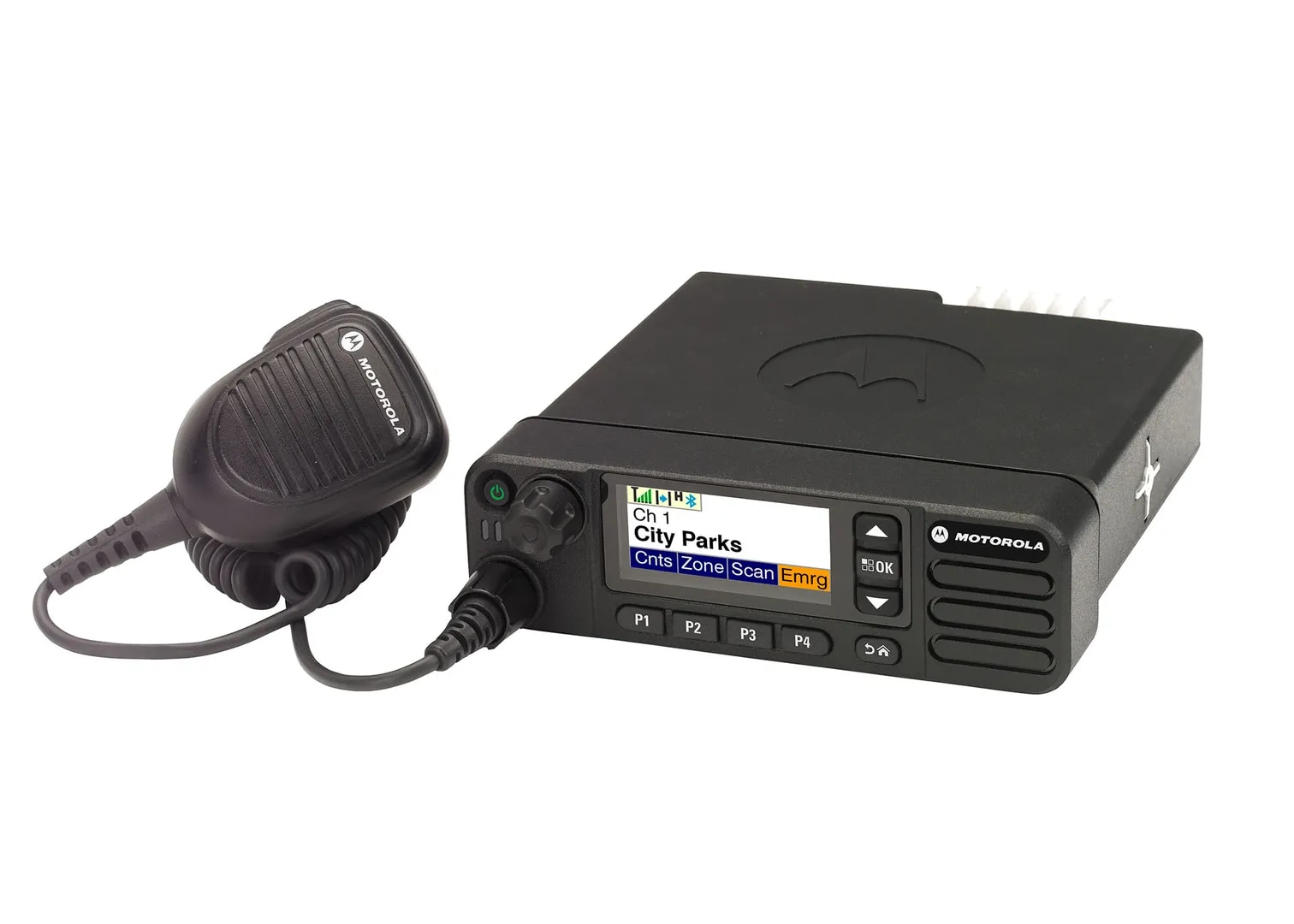

MOTOROLA XIRM6660 BASE STATION & FIXED STATION

The power of digital communications is now within reach. MOTOTRBO XiR M6660 mobile radios are compact and capable so workers can stay connected, whether they are picking up cargo or transporting passengers. As part of the MOTOTRBO family of radios, the XiR M6660 delivers the best in digital radio technology, with features like integrated systems capability, twice the calling capacity, and clearer voice communications. With its Intelligent Audio feature, drivers don’t need to adjust their radio volume to avoid missing a call, as the radio monitors background noise and automatically adjusts itself.

For those operating on analog, the XiR M6660 lets you upgrade to digital at your own pace and budget, with simple scalability to add functions and features. This radio is also compatible with advanced MOTOTRBO business-essential features, such as transmit-interrupt to prioritize critical communication.

For affordable digital systems capability, the MOTOTRBO XiR M6660 gets the job done with clarity and ease.

MOTOROLA XiR M6660 (XIRM6660) – Base / Fixed / Mobile Station – Specifications

Frequency Bands: VHF 136–174 MHz / UHF 403–470 MHz (also 403–438 / 403–470)

Channel Capacity: 256 channels

Output Power (RF): Low: 1–25 W, High: 25–45 W (VHF) / 25–40 W (UHF)

Channel Spacing: 12.5 kHz / 25 kHz

Modulation: Analog FM / Digital (DMR 4-FSK, ETSI TS 102 361-1/-2/-3)

Receiver Sensitivity (Analog): ~0.22 µV (12 dB SINAD typical)

Receiver Sensitivity (Digital): ~0.19–0.25 µV (5% BER)

Adjacent-Channel Selectivity: 50 dB @ 12.5 kHz / 75 dB @ 25 kHz (VHF)

Intermodulation Rejection: 75 dB (VHF) / 70 dB (UHF)

Audio Output: Internal speaker 4 W; External speaker up to 7.5 W (8 Ω) / 13 W (4 Ω)

Dimensions (Body): 44 × 169 × 134 mm

Weight: approx. 1.3 kg

Operating Modes: Analog and Digital both supported — analog-to-digital migration possible

Power Supply: 13.2 V DC typical (vehicle or fixed DC supply)

Environmental / Build Quality: IP54 dust/water resistance; meets MIL-STD 810 ruggedness standards

Features: Intelligent Audio (auto-volume adjust), digital voice & data (text messaging, data), DMR dual-capacity direct mode, privacy/encryption (optional), external speaker and microphone support

Use-Case: Suitable for fixed base-station, vehicle-mount, dispatch, fleet, industrial, transport, security or management networks needing digital & analog flexibility
