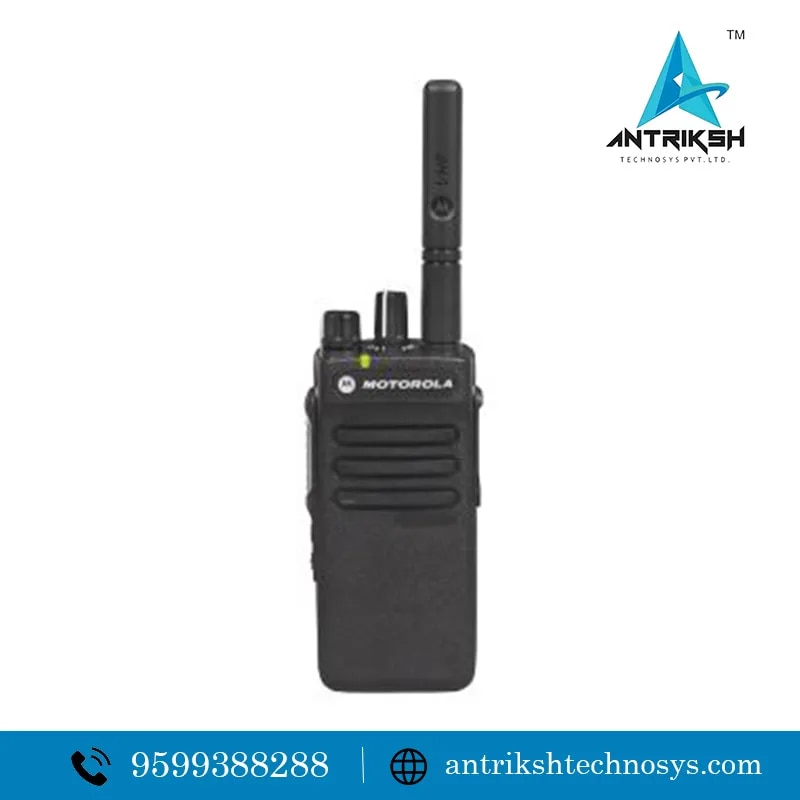

Motorola walkie talkie XIRP6600i (USER License and DPL Required)

Motorola walkie talkie XIRP6600i (This equipment is License Band user license and DPL Required )

MOTOROLA XiR P6600i – Technical Specifications & Features

GENERAL

- Frequency Bands: VHF 136–174 MHz / UHF 350–400 MHz or UHF 403–527 MHz

- RF Output Power: 5 W (VHF) / 4 W (UHF) — Low Power: 1 W

- Channel Spacing: 12.5 kHz or 25 kHz

- Modes: Digital (DMR) + Analogue

- Channel Capacity: up to 256 channels (limited-keypad / full-keypad versions) or 16 channels (no-keypad version)

- Power Supply: nominal 7.5 V Li-Ion battery

PHYSICAL

- Dimensions (radio + standard battery): approx. 122 × 56 × 36 mm

- Weight (with standard battery): approx. 264–290 g (varies by battery type)

BATTERY & OPERATIONAL LIFE

- Standard 1600 mAh battery (5/5/90 duty cycle):

• Digital mode: ~ 16.0 hours

• Analog mode: ~ 11.5 hours

- With higher-capacity 3000 mAh battery: up to ~ 28.5 hours (digital) / ~ 21 hours (analog) depending on band

RECEIVER / TRANSMITTER / AUDIO

- Analog Sensitivity: ~ 0.16 µV (12 dB SINAD)

- Digital Sensitivity: ~ 0.14 µV (5% BER)

- Adjacent-Channel Selectivity / Intermodulation / Spurious Rejection: up to 70 dB

- Audio Output: 0.5 W (with digital vocoder AMBE+2)

- Modulation: 4-FSK for digital, FM for analog

- Frequency Stability: ± 0.5 ppm

- Audio quality: noise-cancellation, intelligible even in noisy environments

FEATURES / FUNCTIONS

- Dual-mode: Digital and Analogue — compatible with legacy and modern systems

- Rugged build: dust & water-resistant (IP67), meets MIL-STD environmental standards

- Supports hazardous-location (HazLoc) certification when used with approved battery/accessories — suitable for industrial / explosive-atmosphere zones

- Repeater-capable; works in conventional, trunking, multi-site & mixed analog/digital networks

- Basic calling features: call/ group call, call tones, channel scan / priority scan / talk-group / system scan / nuisance-channel delete / home-channel revert

- Busy-channel lockout, time-out timer (TOT), low-battery alert

- Over-the-air programming, over-the-air software/battery management (on supported networks)

- Noise-reduction audio (useful for loud environments), selectable audio profiles

ENVIRONMENTAL / SAFETY SPECS

- Operating Temperature: –30 °C to +60 °C

- Dust & Water Protection: IEC 60529 IP67 (dust-tight, immersion suitable)

- Durability: meets MIL-STD ruggedness standards

- HazLoc / UL-Approved for use in hazardous areas (when correctly equipped)
