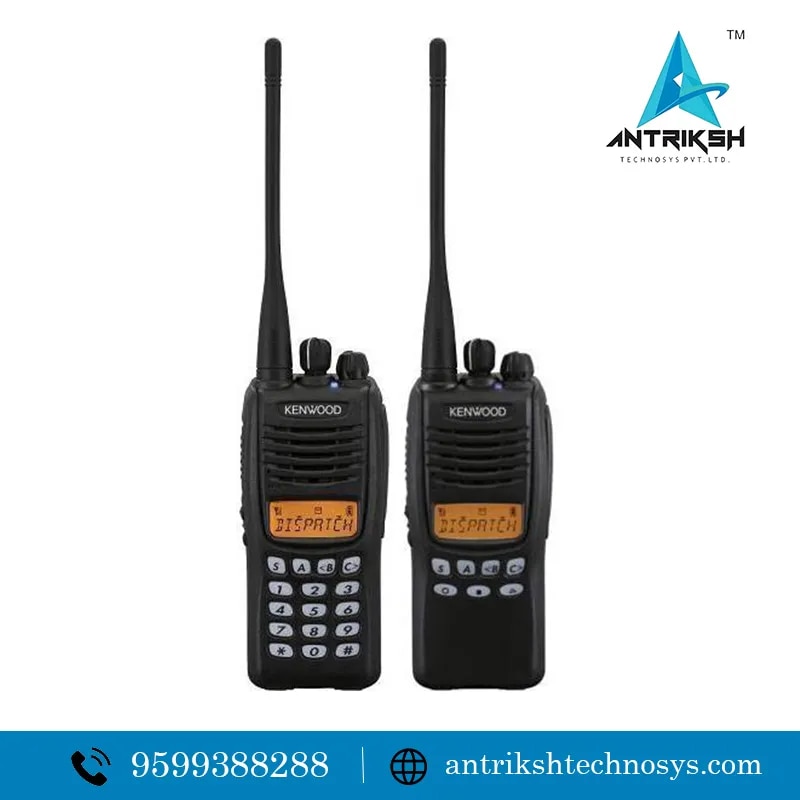

Kenwood walkie talkie TK-2317 (USER License and DPL Required)

Kenwood walkie talkie TK-2317 (This equipment is License Band user license and DPL Required )

KENWOOD TK-2317 – Technical Specifications & Features

GENERAL

- Frequency Range: 136–174 MHz (VHF)

- Channels / Zones: 128 / 128

- Channel Spacing: 25 kHz (wide) / 12.5 kHz (narrow)

- Operating Voltage: 7.5 V DC ±20%

- Battery Life: approx. 9–12 hours (depending on battery pack)

- Operating Temperature: –30°C to +60°C

- Antenna Impedance: 50 Ω

- Dimensions (radio only): 54 × 122 × 21 mm

- Dimensions (with battery): 54 × 122 × 33.7 mm

- Weight: approx. 180 g (radio only)

RECEIVER

- Sensitivity (12 dB SINAD): 0.25 µV (wide) / 0.28 µV (narrow)

- Selectivity: 70 dB (wide) / 60 dB (narrow)

- Intermodulation: 70 dB (wide) / 60 dB (narrow)

- Spurious Response: 70 dB

- Audio Output: 500 mW (8 Ω)

- Audio Distortion: <5%

TRANSMITTER

- RF Output Power: 5 W (High) / 1 W (Low)

- Modulation: 16K0F3E (wide) / 11K0F3E (narrow)

- FM Noise: 45 dB (wide) / 40 dB (narrow)

- Modulation Distortion: <5%

FEATURES / FUNCTIONS

- 128 channels with full zone support

- VOX-ready (hands-free)

- Voice inversion scrambler

- QT / DQT / DTMF / 2-Tone / MDC-1200 / FleetSync signalling

- Emergency call function

- 8-character backlit LCD display

- 4-color LED status indicator

- Scan / Priority Scan / Busy Channel Lockout / TOT

- Programmable function keys

- PC programmable and self-programming capable

- Rugged design: MIL-STD-810 C/D/E/F/G + IP54/55 dust/water protection
