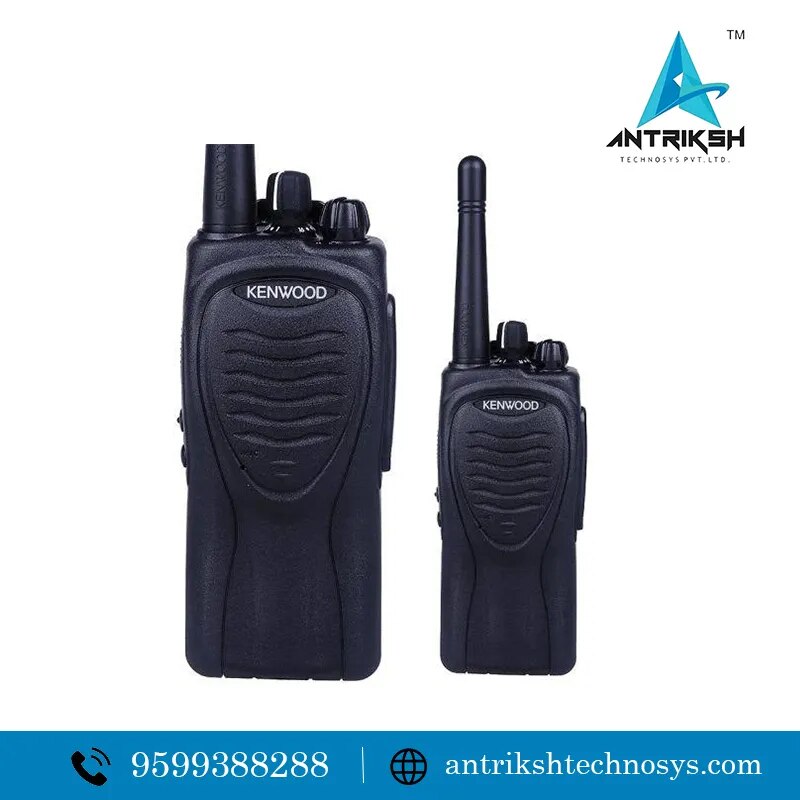

Kenwood walkie talkie TK-2207 (USER License and DPL Required)

Kenwood walkie talkie TK-2207 (This equipment is License Band user license and DPL Required )

KENWOOD TK-2207 – Technical Specifications & Features

GENERAL

- Frequency Range: 136–174 MHz (VHF)

- Channels: 16

- Channel Spacing: 25 kHz (wide) / 12.5 kHz (narrow)

- Operating Voltage: 7.5 V DC ± 20%

- Battery: Ni-MH (standard ~1500 mAh)

- Battery Life (5-5-90 cycle, battery saver off): approx. 9–16 hours (depending on battery pack)

- Operating Temperature Range: –30 °C to +60 °C

- Antenna Impedance: 50 Ω

- Dimensions (radio only): 54 × 122 × 33.7 mm

- Weight (radio only): 165 g (with battery ~281–360 g depending on battery pack)

RECEIVER

- Sensitivity (12 dB SINAD): 0.25 µV (wide) / 0.28 µV (narrow)

- Selectivity (Wide/Narrow): 70 dB / 60 dB

- Intermodulation Distortion (Wide/Narrow): 65 dB / 60 dB

- Spurious Response Rejection: 70 dB

- Audio Output: 1 W (internal speaker, 12 Ω) or 500 mW (external output, 8 Ω)

TRANSMITTER

- RF Output Power: 5 W (High) / 1 W (Low)

- Modulation: 16K0F3E (wide) / 11K0F3E (narrow)

FEATURES / FUNCTIONS

- VOX (hands-free) ready

- Built-in voice scrambler for privacy (selectable per channel)

- Multi signalling options: QT / DQT / DTMF / CTCSS / DCS / 2-Tone / 5-Tone / MDC-1200 / FleetSync-type PTT-ID & selective call

- Busy-channel lockout, low-battery alert, time-out timer (TOT)

- Channel scan / Priority scan / Monitor function

- Key lock, programmable side keys, wireless cloning, PC programming support

- Rugged build meeting environmental standards (dust/water resistance, MIL-STD 810 class)
