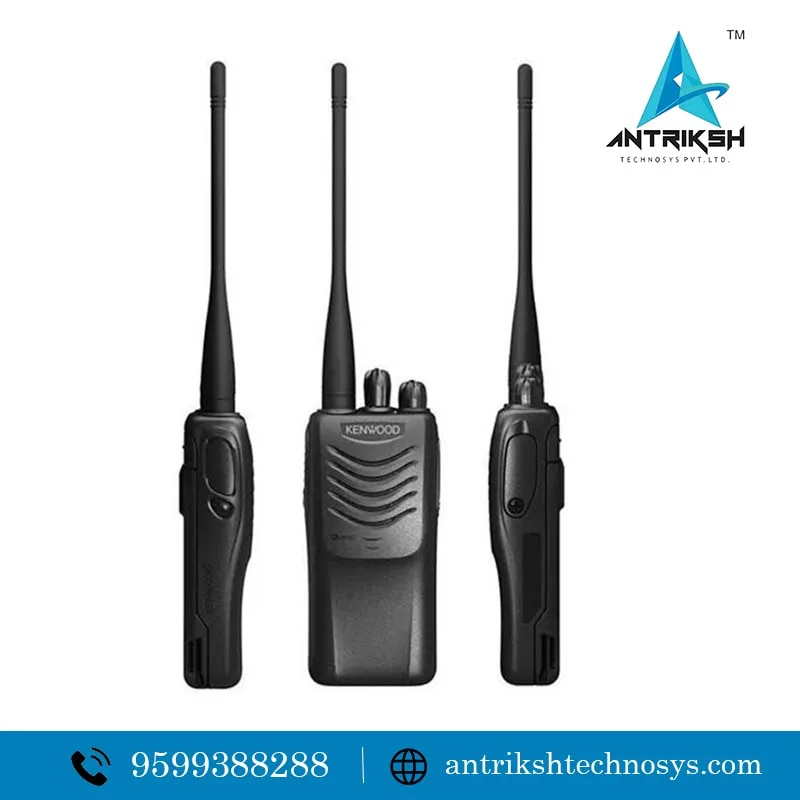

Kenwood walkie talkie TK-2000 (USER License and DPL Required)

Kenwood walkie talkie TK-2000 (This equipment is License Band user license and DPL Required )

KENWOOD TK-2000 – Technical Specifications & Features

GENERAL

- Frequency Range: 136–174 MHz (VHF)

- Channels: 16

- Channel Spacing / Step: 25 kHz / 12.5 kHz (wide / narrow); step 5 or 6.25 kHz

- Operating Voltage: 7.5 V DC ± 20%

- Battery Life (with KNB-63L): approx. 10 hours (5-5-90 duty cycle)

- Operating Temperature: –20 °C to +60 °C

- Antenna Impedance: 50 Ω

- Channel Frequency Spread: 30 MHz

- Dimensions (without antenna): 54 × 113 × 14 mm

- Dimensions (with battery): 54 × 113 × 24.9 mm

- Weight: ~130 g (radio only); ~203 g (with battery)

RECEIVER

- Sensitivity (12 dB SINAD): 0.25 µV (wide) / 0.28 µV (narrow)

- Selectivity: 70 dB (wide) / 60 dB (narrow)

- Intermodulation Distortion: 65 dB (wide) / 60 dB (narrow)

- Spurious Response Rejection: 65 dB

- Audio Output: 500 mW (8 Ω)

- Audio Distortion: < 5%

TRANSMITTER

- RF Output Power (High / Low): 5 W / 1 W

- Modulation: 16K0F3E (wide) / 11K0F3E (narrow)

- FM Noise (wide/narrow): 45 dB / 40 dB

- Modulation Distortion: < 5%

FEATURES / FUNCTIONS

- 16 programmable channels + scan function

- QT / DQT (tone signalling) & optional DTMF encode (PTT-ID, autodial)

- Priority-scan / channel scan / busy-channel lockout / time-out-timer (TOT)

- VOX (hands-free) ready / battery-save function / low-battery alert

- Programmable function (PF) key with “hold” option

- Tri-colour LED indicator

- Rugged build: meets MIL-STD-810 C/D/E/F/G + IP54 dust/water protection
