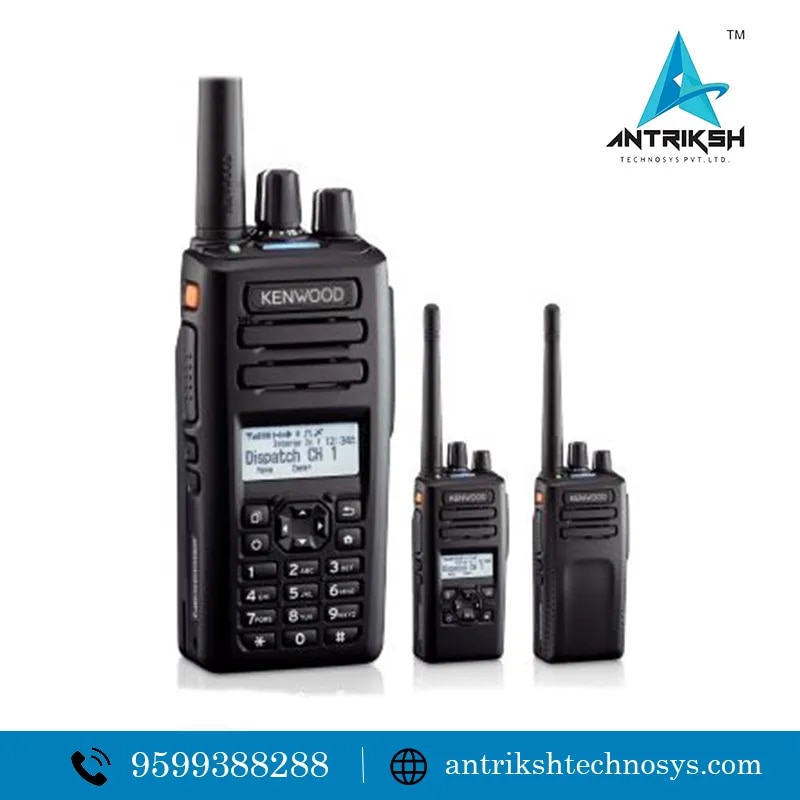

Kenwood walkie talkie NX-3220 (USER License and DPL Required)

Kenwood walkie talkie NX-3220 (This equipment is License Band user license and DPL Required )

Kenwood NX-3220 – Technical Specifications & Features

GENERAL

Frequency Range: 136 – 174 MHz (VHF)

Channel Capacity: 260 channels (upgradable to 1000 with option)

Zones: 128 zones (4 zones on LCD-less basic version)

Channel Spacing (Analog): 12.5 / 15 / 25 kHz (also 30 kHz where allowed)

Channel Spacing (Digital): 12.5 kHz or 6.25 kHz

Power Supply: 7.5 V DC ± 20%

RF / TRANSMITTER

Output Power: 5 W (High) / 4 W (Mid) / 1 W (Low)

Modulation: Analog FM / Digital (NXDN / DMR — depending variant)

RECEIVER & AUDIO

Receiver Sensitivity (Analog, 12.5/15/25 kHz): approx. 0.25 µV

Receiver Sensitivity (Digital NXDN 6.25 kHz, 3% BER): approx. 0.20 µV

Selectivity (Analog): good adjacent-channel and spurious rejection performance

Internal Speaker Audio Output: up to 1000 mW (with distortion ≤ 5%)

Digital mode: clear audio via DSP / digital processing

BATTERY & POWER / OPERATION

Battery Packs Supported: Standard and high-capacity Li-Ion packs

Typical Battery Life (with KNB-57L / 2000 mAh battery): up to approx. 13–14 hours (depending duty cycle and mode)

Operating Temperature Range: –30 °C to +60 °C

Frequency Stability: ±2 ppm (operational range)

FEATURES & FUNCTIONS

• Mixed-mode support: Analog FM + Digital (NXDN / DMR) — helps gradual migration

• Support for NXDN conventional, Type-C & Gen2 trunking (where licensed/configured)

• Built-in Bluetooth for hands-free operation

• Built-in GPS (in GPS-enabled variants) — useful for fleet management / tracking

• Option for AES / DES encryption module (digital mode) for secure communication

• 7-color top-panel status indicator light for busy / call / alarm / status alerts

• Durable, rugged construction: IP54 / IP55 / IP67 ingress protection (depending variant and accessory cover)

• Compliant with MIL-STD-810 C/D/E/F/G for shock, vibration, dust, humidity, temperature extremes

• Multiple model variants: full keypad + LCD; standard keypad + 4-way D-pad + LCD; basic model without LCD/keypad

• Supports various advanced features: man-down / motion detection (with built-in motion sensor), emergency call / alert, lone-worker mode, mixed analog/digital network compatibility

PHYSICAL / DIMENSIONS

Dimensions (radio only, body without protrusions): approx. 56.0 × 119.6 × 36.4 mm

Weight (radio only): approx. 220 g

Weight with standard battery (KNB-55L): approx. 315 g

Antenna Impedance: 50 Ω
