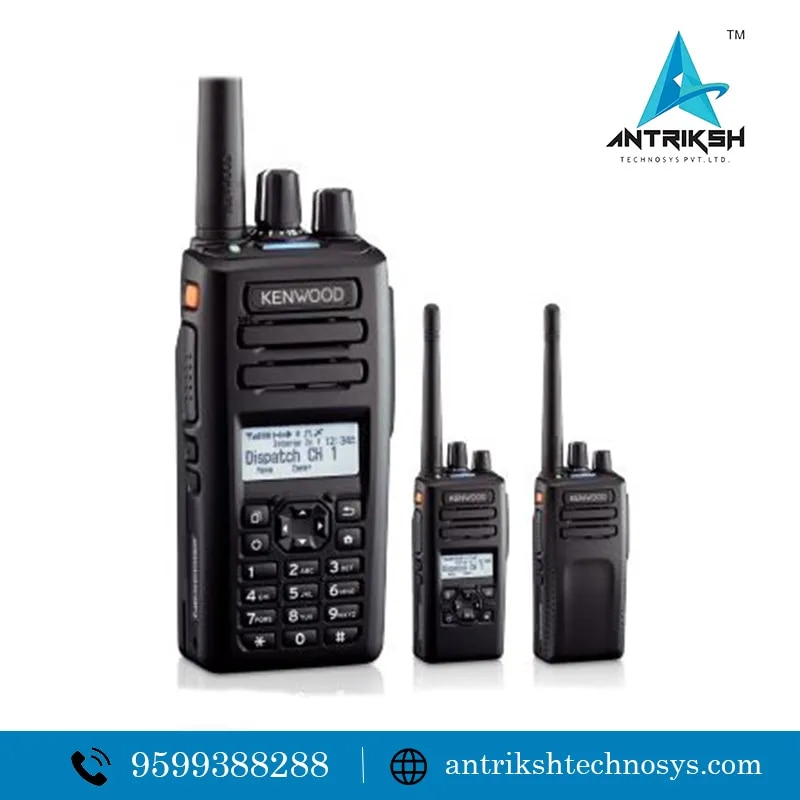

Kenwood walkie talkie NX-3220 IS (USER License and DPL Required)

Kenwood walkie talkie NX-3220 IS (This equipment is License Band user license and DPL Required )

Kenwood NX-3220 IS – Technical Specifications & Features

Type: Portable Digital / Analog Two-Way Radio (VHF) – Intrinsically Safe version available

Frequency Range: 136 – 174 MHz

Channel Capacity: 260 channels (upgradable up to 1000 channels)

Zones: 128 zones (basic models: 64 channels / 4 zones)

Channel Spacing (Analog): 12.5 / 15 / 20 / 25 kHz

Channel Spacing (Digital): 6.25 / 12.5 kHz

RF Output Power (TX): 5 W (High) / 4 W (Normal) / 1 W (Low)

Receiver Sensitivity:

• NXDN 6.25 kHz (3% BER): 0.20 µV

• NXDN 12.5 kHz (3% BER): 0.25 µV

• DMR 12.5 kHz (5% BER): 0.30 µV

• Analog 12 dB SINAD: 0.25 µV

Audio Output (Internal Speaker): up to 1 W (8 Ω) typical

Emission / Modulation: NXDN, DMR, or Analog FM

Mixed Mode: Digital (NXDN / DMR) + Analog FM supported for gradual migration

Power Supply: 7.5 V DC ±20% using approved Li-ion battery pack (for IS compliance)

Battery Options: Multiple Li-ion packs; talk-time varies with battery & duty cycle

Operating Temperature Range: –30 °C to +60 °C

Build & Protection: IP54 / IP55 / IP67 rated (with covers/accessories), rugged construction, MIL-STD-810 C/D/E/F/G

Special Features:

- Intrinsically Safe (IS) certified version for hazardous / explosive environments

- Built-in GPS receiver/antenna for fleet, asset, or personnel tracking

- Built-in Bluetooth (HSP / SPP) for hands-free operation and data applications

- 7-color light bar indicator on top for visual status/call/alert indication

- 4-line LCD screen (on keypad-capable models) or basic model without display

- 4-way D-pad navigation (on non-basic models)

- Mixed digital + analog operation for smooth transition or hybrid network use

- Encryption support (AES / DES, optional) for secure communications

- Motion sensor (man-down, stationary detection, motion detection) for safety and lone-worker use

- Emergency call / alert, status & text message, paging call, remote stun/kill/check (digital mode)

- Flexible keypad/display variants: full keypad, standard keypad + D-pad, or basic “no-LCD” model
