Kenwood Repeator station NXR-710 (USER License and DPL Required)

Kenwood Repeator station NXR-710 (This equipment is License Band user license and DPL Required )

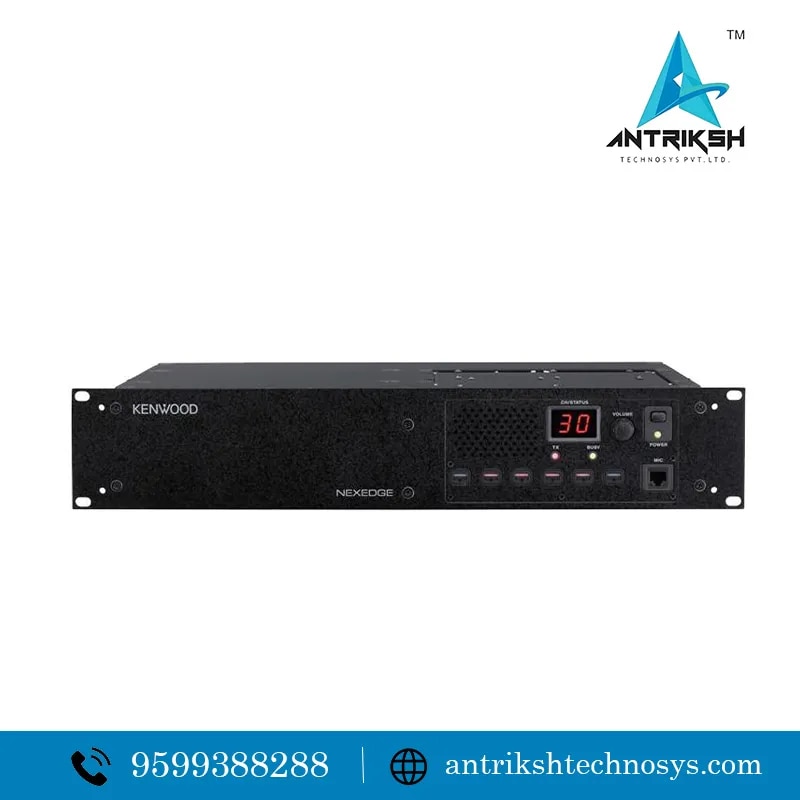

Kenwood NXR-710 – Base / Repeater Station (NEXEDGE)

GENERAL

Model: Kenwood NXR-710

Band: VHF (136–174 MHz)

Operating Modes: Analog FM and Digital NXDN conventional (mixed-mode possible)

Channel Capacity: 30 programmable channels (scanning base)

Channel Spacing (Analog): 25 kHz / 12.5 kHz

Channel Spacing (Digital): 12.5 kHz / 6.25 kHz

PLL Channel Step: 2.5 kHz / 3.125 kHz

Antenna Impedance: 50 Ω

TRANSMITTER / RF OUTPUT

RF Output Power: 50 W (at 50% duty) / 25 W (continuous duty)

Duty Cycle: 50% at 50 W, 100% at 25 W

RECEIVER & AUDIO

Receiver Sensitivity: Digital 0.22 µV (6.25 kHz) / 0.28 µV (12.5 kHz), Analog 0.28 µV (12 dB SINAD)

Selectivity (Analog): 83 dB (25 kHz) / 77 dB (12.5 kHz)

Spurious Response / Intermodulation Rejection: high (~90 dB spurious, ~80 dB intermodulation)

External Speaker Audio Output: 4 W into 4 Ω (≤ 5% distortion)

INTERFACE & CONTROL

Front-panel: two-digit LED display, 6 programmable lighted function keys, front-panel speaker, microphone jack, volume control

Rear: external speaker output, AUX I/O ports, external controller interface (FM / NXDN), remote termination interface

Repeater Controller: Built-in 16-code CTCSS/DCS repeater controller for analog FM

Digital Repeater Support: NXDN conventional & optional trunking, built-in digital repeater controller (RAN), supports up to 1000 UIDs / 1000 GIDs per site, mixed analog/digital operation, digital voice with AMBE+2 vocoder, built-in digital scrambler

FEATURES

- Mixed analog FM and NXDN digital conventional operation on same hardware

- Full duplex base / repeater operation — supports simplex or duplex configuration

- 30-channel scanning in base mode

- Programmable AUX I/O’s, DTMF front-panel key control & AUX output/control, AUX input monitoring

- Hang timer, time-out timer (TOT), CW ID for analog mode

- External controller interfaces for conventional or trunked analog systems (e.g. LTR / MPT)

- Supports IP-network connectivity (with optional interface) for multi-site linking / networking

- Flash-upgradable firmware; PC-programmable configuration

- Rugged, rack-mountable design (19' rack) for permanent installation

PHYSICAL & POWER

Operating Voltage: 13.2–15.6 V DC (nominal 13.6 V DC)

Operating Temperature Range: –30 °C to +60 °C

Dimensions (WxHxD, excluding protrusions): 483 × 88 × 340 mm

Net Weight: approx. 9.7 kg

Antenna Connector: 50 Ω standard

APPLICATION / USE CASE

Ideal as a site base station or repeater for enterprise, security, industrial, campus, facility-wide or local-area communication networks. Supports mixed analog and digital radios — suitable for migration from analog to digital systems without replacing infrastructure.
