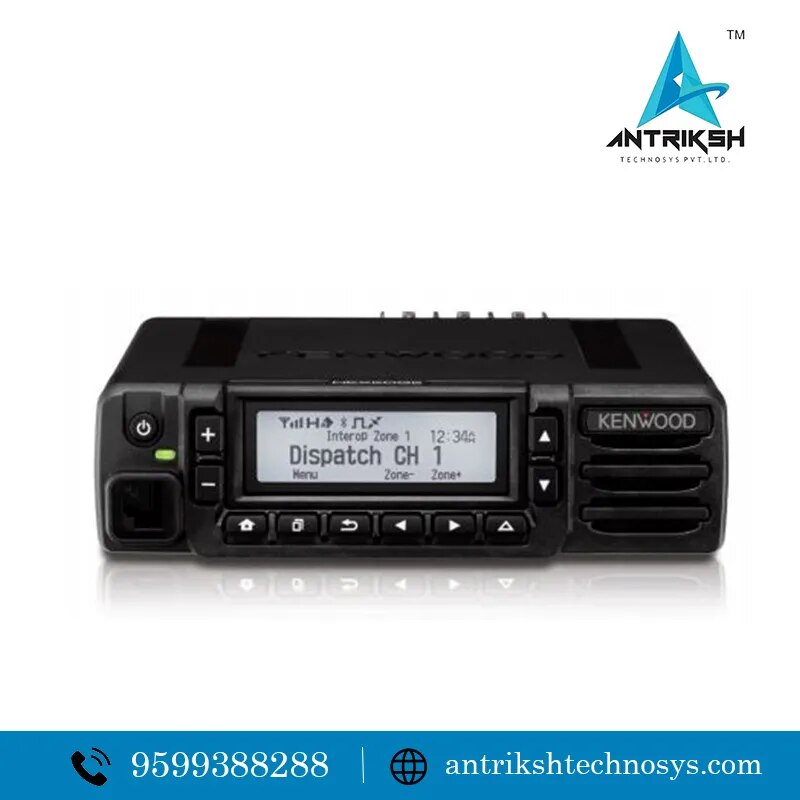

Kenwood Base station NX-3920 (USER License and DPL Required)

Kenwood Base station NX-3920 (This equipment is License Band user license and DPL Required )

Kenwood NX-3920 – Specifications & Features

GENERAL

Frequency Range: 806–825 MHz (TX) / 851–870 MHz (RX) [for NX-3920GK variant]

Channel Capacity: 512 channels (up to 1000 channels with option)

Zones: 128 zones

Channel Spacing / Modulation:

Analog: 12.5 kHz / 25 kHz

Digital: 6.25 kHz / 12.5 kHz

Power Supply: 13.6 V DC ± 15%

Operating Temperature: –30 °C to +60 °C

Antenna Impedance: 50 Ω

Dimensions (W × H × D, body only): 160 × 43 × 160 mm

Weight (net): approx. 1.2 kg

TRANSMITTER

RF Output Power: 15 W / 5 W (selectable)

Spurious Emissions: ≤ –70 dB

Emission Designators: Supports multiple analog and digital emission types (FM analog and NXDN / DMR digital)

RECEIVER

Receiver Sensitivity (Digital 6.25/12.5 kHz, and Analog 12 dB SINAD): from approx. 0.20 µV (digital / best case) / 0.25 µV (analog)

Selectivity (Analog): 60 dB (12.5 kHz), 70 dB (25 kHz)

Intermodulation Rejection: approx. 70 dB

Spurious Response Rejection: approx. 80 dB

Audio Output Power: 4 W (into 4 Ω load)

FEATURES & FUNCTIONS

- Multi-protocol support: NXDN digital, DMR digital and analog FM — mixed digital + analog operation allows flexible network setup

- Mixed-mode operation — supports analog and digital radios in same system

- 512 channel / 128 zone architecture; expandible up to 1000 channels

- High RF output (15 W) for strong base/mobile communication

- Strong receiver sensitivity and good selectivity for clean reception

- Built-in digital and analog signaling/flexibility — suitable for enterprise, industrial or security communication networks

- 4 W audio output — clear speaker output suitable for dispatch / base station use

- Compact, rack / vehicle / base-mountable design (160 × 43 × 160 mm, 1.2 kg)

- Works over wide operating temperature range — suited for tough environments

APPLICATION / SUITABILITY

- Use as a mobile radio in vehicles, base-station radio in offices or facilities

- Ideal for enterprises, security firms, industries requiring reliable digital & analog Communication
