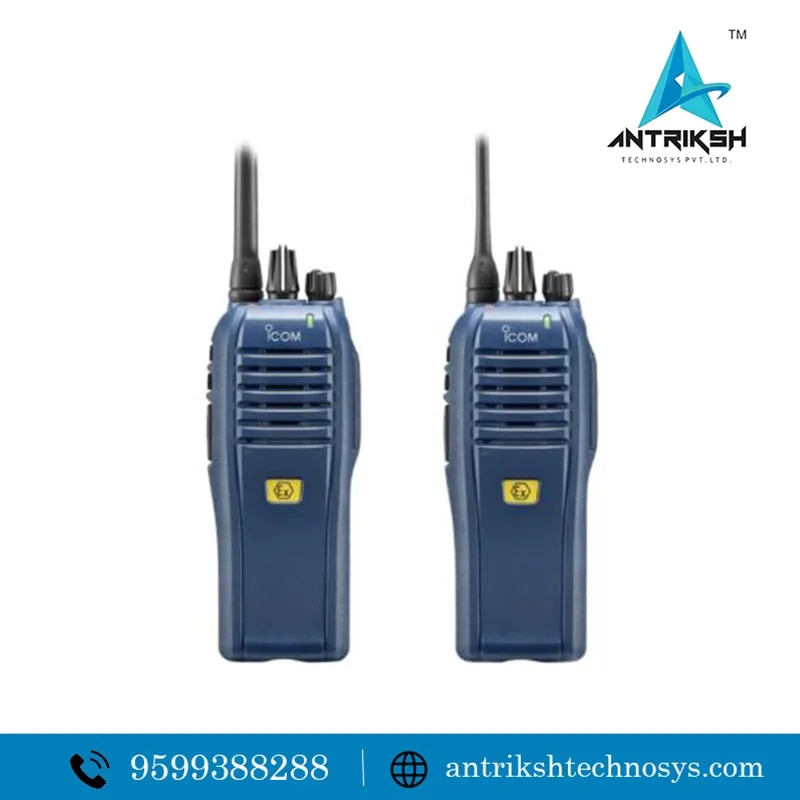

ICOM walkie talkie IC-F4202D (USER License and DPL Required)

ICOM walkie talkie IC-F4202D (This equipment is License Band user license and DPL Required )

ICOM IC-F4202D – Technical Specifications & Features

UHF Handheld Two-Way Radio (Analogue / Digital capable)

GENERAL

Model: ICOM IC-F4202D / IC-F4202DEX

Frequency Range: 400 – 470 MHz (UHF)

Channel Capacity: 16 channels (programmable)

Antenna Impedance: 50 ohms

Battery: Rechargeable Li-Ion battery (supplied)

Protection: IP67 – dust-tight & waterproof (can survive submersion up to 1 m for 30 min)

Ruggedness: Meets MIL-STD (shock, vibration, environmental) standards

TRANSMITTER

RF Output Power: Up to 1 W (depending on region / license)

Modulation: FM (analogue); supports digital mode (NXDN / dPMR / IDAS depending version)

Signaling (analogue mode): CTCSS / DTCS, 2-Tone / 5-Tone, BIIS PTT-ID, DTMF auto-dial

Digital Mode Features (on digital-capable variants):

- NXDN / dPMR conventional or single-site trunking support

- Individual / Group / All-call

- PTT-ID (TX), Radio Check, Stun / Kill / Revive, Emergency, Remote Monitor (RX), Status Call, Voting Scan, Digital Voice Scrambler

RECEIVER

Receiver Sensitivity: Typically ~0.25 µV (analogue)

Selectivity / Spurious Rejection: meets professional spec (good adjacent-channel and intermodulation performance)

Audio: Built-in speaker with loud, clear audio (designed for noisy / industrial environments)

FEATURES

- Waterproof & dust-tight (IP67) — suitable for rugged / outdoor / industrial / marine use

- Programmable keys (3 programmable buttons including Emergency-red button)

- Channel announce (voice channel identifier)

- 16 memory channels with channel naming

- Lone Worker & Man-Down functions with built-in motion sensor (on some versions) — for safety in hazardous environments

- Emergency call / alarm button

- Alert / Notification functions (PTT ID, group calls, status call, emergency, remote monitor, stun/kill)

- Supports both analogue and digital modes (on digital / ATEX version) — good for current and future compatibility

- BIIS 1200 / DTMF signalling / selective calling

- Time-Out Timer (TOT), Busy Channel Lockout (BCL), power-save modes

- Compatible with accessories: e.g. waterproof speaker-microphone, belt clip, rapid charger

BATTERY & OPERATING TIME

Battery: Li-Ion (standard)

Operating Time: Long battery life — up to ~19–21 hours (typical duty cycle: 5% Tx / 5% Rx / 90% standby) — depending on usage and version

USE CASES / SUITABILITY

- Industrial environments (construction, manufacturing, plants)

- Outdoor, field work, mining, oil & gas (especially for ATEX-certified versions)

- Security, event management, logistics, warehousing

- Marine / harsh weather operations (due to waterproof / dustproof design)

- Agencies requiring safety features (lone-worker, man-down, emergency alert)

OPTIONAL / SUPPLIED ACCESSORIES

- Belt clip

- Rechargeable battery pack

- Charger (rapid desk charger)

- Waterproof speaker-microphone (for hazardous / outdoor use)

- Additional accessories depending on requirement (external speaker, headset, programming cable)
