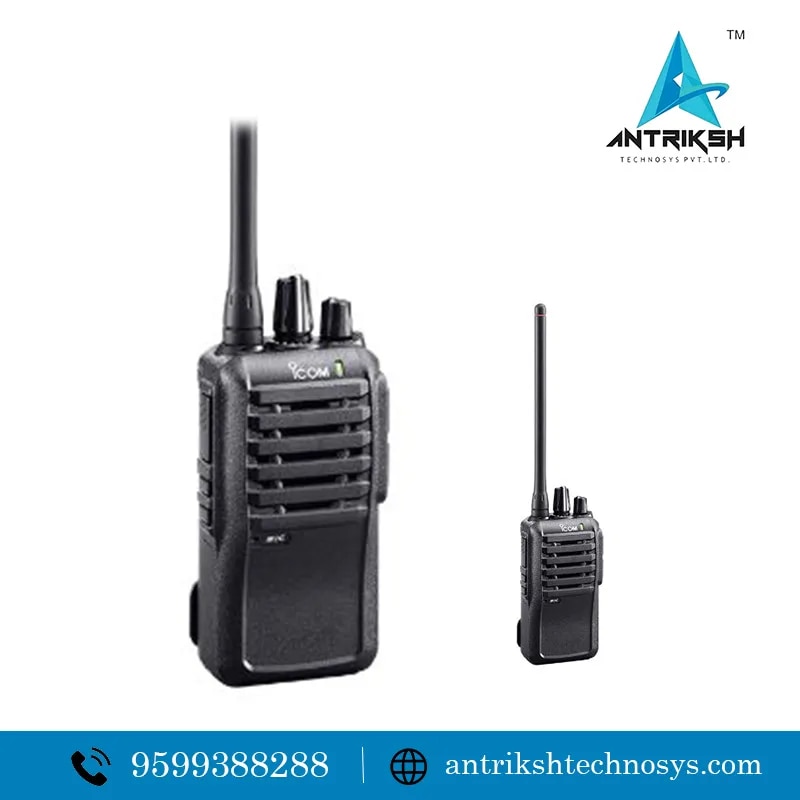

ICOM walkie talkie IC-F4003 (USER License and DPL Required)

(This equipment is License Band user license and DPL Required )

ICOM IC-F4003 – Technical Specifications & Features

GENERAL

Frequency Range: 400 – 470 MHz (UHF)

Channel Count: 16 channels

Channel Spacing: 12.5 kHz or 25 kHz

Power Supply: 7.2 V DC (Li-Ion battery, BP-298)

Battery Capacity: 2250 mAh (typical)

Battery Life (5-5-90 duty cycle): up to ~22 hours (with power-save on)

Antenna Impedance: 50 Ω

Operating Temperature Range: –30 °C to +60 °C

Dimensions: approx. 58 × 111 × 35.5 mm (without protruding parts)

Weight (with battery): approx. 270 g

TRANSMITTER

RF Output Power: 5 W / 2 W / 1 W (selectable)

Modulation (Analog): FM, 16K0F3E / 11K0F3E

Frequency Stability: ±2.5 ppm

Spurious Emissions: ≤ –70 dB

Audio Distortion (AF 1 kHz 40% dev): ≤ 1.0% (wide) / ≤ 1.5% (narrow)

RECEIVER

Sensitivity: ≤ 0.25 µV (12 dB SINAD)

Adjacent Channel Selectivity: ≥ 73 dB (wide) / ≥ 65 dB (narrow)

Spurious Response Rejection: ≥ 70 dB

Intermodulation Rejection: ≥ 74 dB

Audio Output Power: internal speaker ~1500 mW (typ.), external speaker output supported

FEATURES & FUNCTIONS

- Strong 1500 mW audio — loud and clear even in noisy environments

- VOX (voice-activated transmit) for hands-free operation

- Signaling: MDC-1200, 2-Tone / 5-Tone, CTCSS/DTCS, DTMF auto-dial

- PTT-ID, emergency call, selective calling, group / individual call support

- Channel scan and priority scan

- Talk-around / repeater-bypass function

- Lone-Worker mode, low-battery alert

- Time-out timer, busy channel lockout

- Power-save mode (dual-step)

- PC programmable (via optional programming cable / software)

- Rugged build: dust & splash resistance (IP54), MIL-STD-810 tested

ACCESSORIES (Typical / Optional)

Standard: Li-Ion battery (BP-298), antenna, belt clip, charger / power cable

Optional: external speaker, speaker-microphone, earpiece / headset, programming cable
