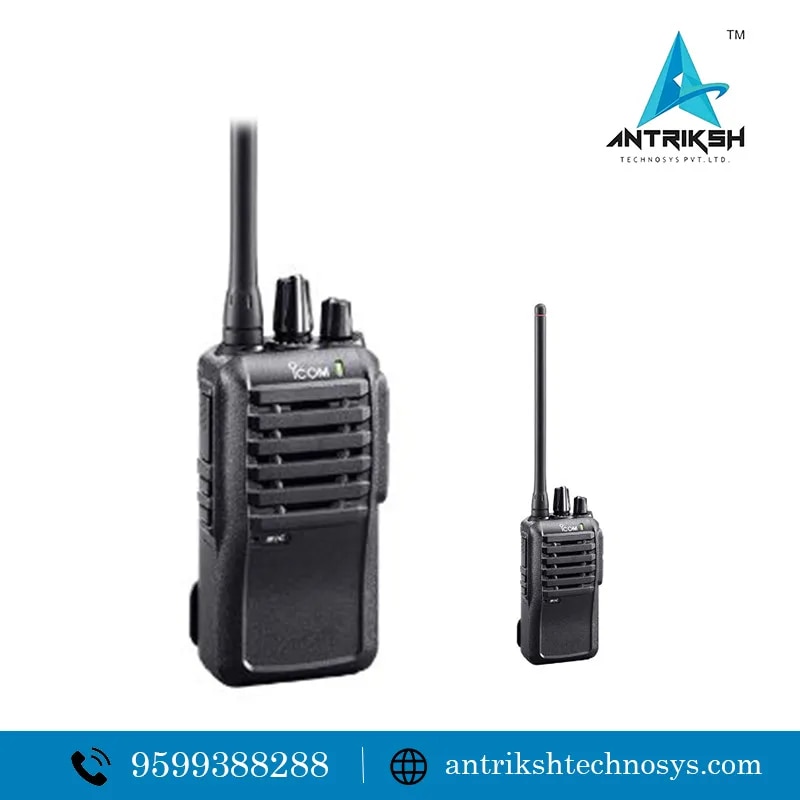

ICOM walkie talkie IC-F3003 (USER License and DPL Required)

ICOM walkie talkie IC-F3003 (This equipment is License Band user license and DPL Required )

ICOM IC-F3003 – Technical Specifications & Features

GENERAL

Frequency Range: 136 – 174 MHz (VHF)

Channels: 16 memory channels

Emission / Channel Spacing: 11K0F3E or 16K0F3E, 12.5 kHz / 25 kHz

Power Supply: 7.2 V DC (battery pack)

Antenna Impedance: 50 Ω

Operating Temperature: –30 °C to +60 °C

Dimensions (without projections): 58 × 111 × 35.5 mm

Weight (with battery): approx. 265–270 g

TRANSMITTER

RF Output Power: 5 W (High) / 2 W (Medium) / 1 W (Low)

Frequency Stability: ±2.5 ppm

Max. Frequency Deviation (Wide/Narrow): ±5.0 kHz / ±2.5 kHz

Spurious Emissions: ≥ 70 dB (min.)

Residual Modulation: 58 dB (wide) / 53 dB (narrow) typical

Audio Distortion (AF 1 kHz, 40% dev): ≤ 1.0% (wide) / ≤ 1.5% (narrow)

RECEIVER

Receiver Sensitivity (12 dB SINAD): ~0.25 µV (typical)

Adjacent Channel Selectivity (wide/med/narrow): ~78 dB / 70 dB (typical)

Spurious Response Rejection: ≥ 70 dB (min.)

Intermodulation Rejection: ~75 dB (typical)

Internal Speaker Audio Output: 1500 mW (typical, 8 Ω load)

External Speaker Output: ~400 mW (8 Ω)

POWER / CURRENT

Transmit (High): ~1.3 A drain

Receive (Standby): ~75 mA

FEATURES

- Rugged, dust/splash-resistant body (IP54) with MIL-STD-810 durability

- CTCSS / DTCS tone encode/decode built-in

- MDC-1200 PTT-ID and emergency call support

- Internal VOX (voice-activated transmit) — hands-free operation

- Large loud speaker (800 mW ~ 1500 mW) for clear audio in noisy environments

- Simple, reliable analog walkie-talkie operation

- Belt clip, standard antenna, battery pack and charger support

USE CASES

Ideal for security, industrial, construction, logistics, event-management — anywhere robust, reliable VHF voice communication is required
